| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUIFENG |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | Normally 20 to 30days |
| Payment Terms: | L/C, T/T |
| Specification Level: | PSL1-PSL4 | Application: | Oil Drilling |
|---|---|---|---|
| Temperature Level: | L-X（-46℃～180℃ ） | Valve Test: | 100% Quantity Tested Before Delivery |
| Design, Manufactu & Test Standard: | API 6A | ||
| Highlight: | Oil drilling wellhead Choke Valve,PSL1-PSL4 choke manifold,Oil drilling choke manifold |
||

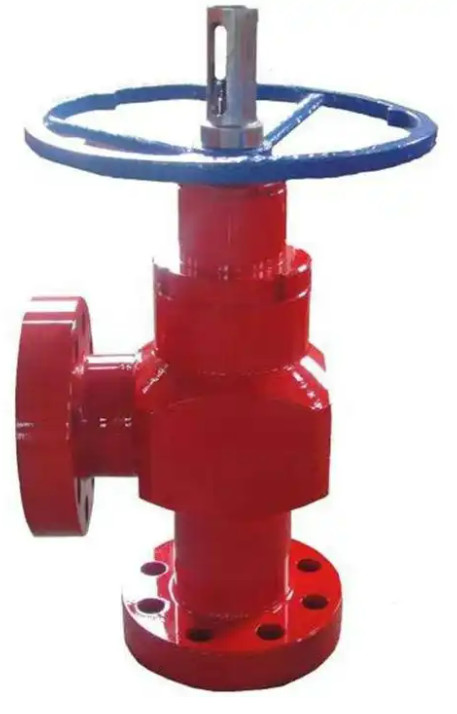

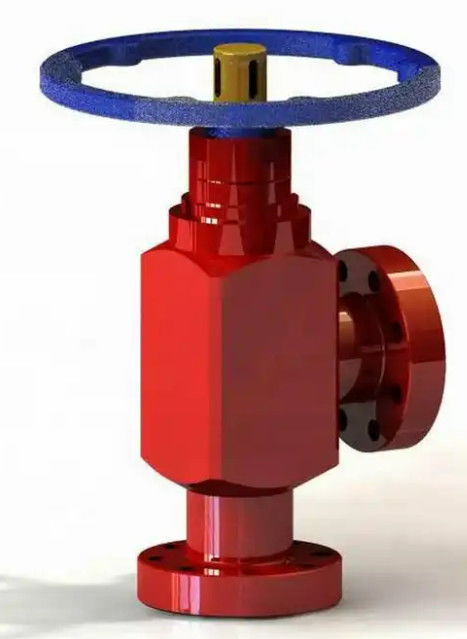

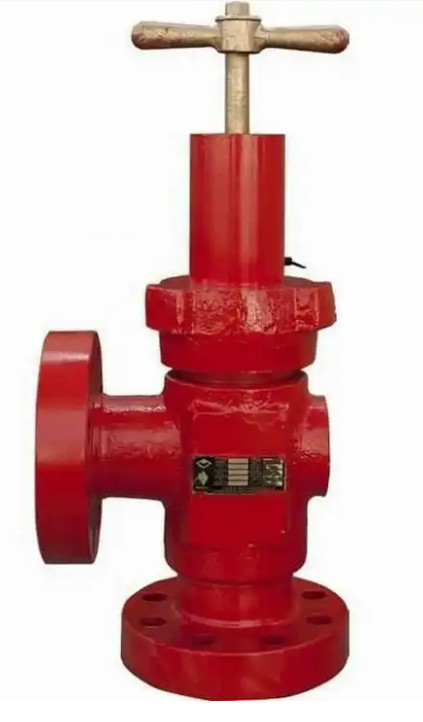

Choke Valve for wellhead and choke manifold with high quality and pretty price
Parameters of the product
The choke valve, a main component of Christmas tree, is design to control production rate of the oil well, with working pressure up to 15000psi. Choke valves can be classified as follows: adjustable choke valves and positive choke valves. By rotating hand wheel to move the stem, the adjustable choke valve is designed to adjust the effective area available for the flow to accomplish control of production rate. The positive choke valve is design to accomplish control of production rate by changing flow beans.
Specifications of the item
| Specification Level | PSL1-PSL4 |
| Application | Oil drilling |
| Temperature Level | L-X(-46℃～180℃ ) |
| Valve test | 100% quantity tested before delivery |
| Design, Manufactu & Test standard | API 6A |
HH level product internal channel welding machine
Equipped with 4 fully automatic inner channel welding machines, used for HH grade products inner channel corrosion-resistant alloy and backing ring groove surfacing welding.
PR2 performance testing equipment
PR2 high and low temperature pressure/temperature cycling performance testing equipment,Capable of conducting pressure/temperature cycling tests from 0 to 210MPa, -70 ℃ to+200 ℃.
